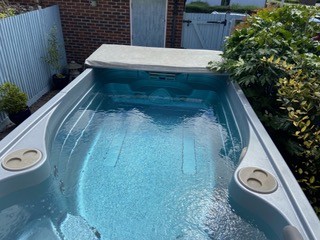

Hydropool 14fx Aqua Trainer – LM-RH6
The 2020 Hydropool 14fX AquaTrainer is a premium 14-foot swim spa engineered for high-performance swimming, fitness, and hydrotherapy. It features Hydropool’s signature patented Self-Cleaning system alongside a non-turbulent, wide-stream swimming current designed for all athletic levels.
The official design and technical specifications for the 2020 14fX AquaTrainer model are detailed below:
Physical Dimensions & Capacity
- Size Category: 14-Foot Swim Spa
- Shell Dimensions: 174″ x 93″ / 442 cm x 236.2 cm
- Height: 48.75″ / 123.83 cm (total steel frame height)
- Water Volume: 1,726 US Gallons / 6,534 Liters
- Dry Weight: 2,302 lbs. / 1,046 kg
- Filled Weight: 16,706 lbs. / 7,580 kg (excluding occupants)
Swim Propulsion & Exercise Systems
- Swim Jets: 2 High-Performance Wide Stream V-Twin Swim Jets + 1 High-Flow Core Buoyancy Jet
- Swim Pumps: 2 x 5.0 HP AquaBoost Swim Pumps
- Buoyancy/Therapy Pump: 1 x 4.0 HP Evergreen Single-Speed Pump
- Current Control: AquaFlex Current Control / AquaPro Control panel (allows you to adjust swim speed dynamically)
- Fitness Inclusions: AquaCord Swim Tether loop and a 24″ stainless steel exercise grab bar
Hydrotherapy Seating
- Seating Capacity: 2 dedicated multi-tier hydrotherapy massage seats
- Total Massage Jets: 20 Stainless Steel HydroFlow Jets
- Zone Breakdown: 12 Back Therapy jets, 4 Leg Therapy jets, and 4 Adjustable Thigh Therapy jets
Plumbing, Electrical & Hardware
- Filtration: Patented Self-Cleaning System (utilizes a HydroClean Floor Vacuum and a removable core pressurized filter to clean 100% of the water every 40 minutes)
- Filtration Pump: 1 x 1/6 HP dedicated low-energy HydroClean filtration pump
- Heater Output: Dual Stainless Steel HydroWise Heaters (2 x 3.0 kW configuration for EU/UK markets)
- Electrical Requirements: 50 Amp dedicated hardwired RCD breaker supply (230V)
- Insulation: HydroWise Thermal Shield System
